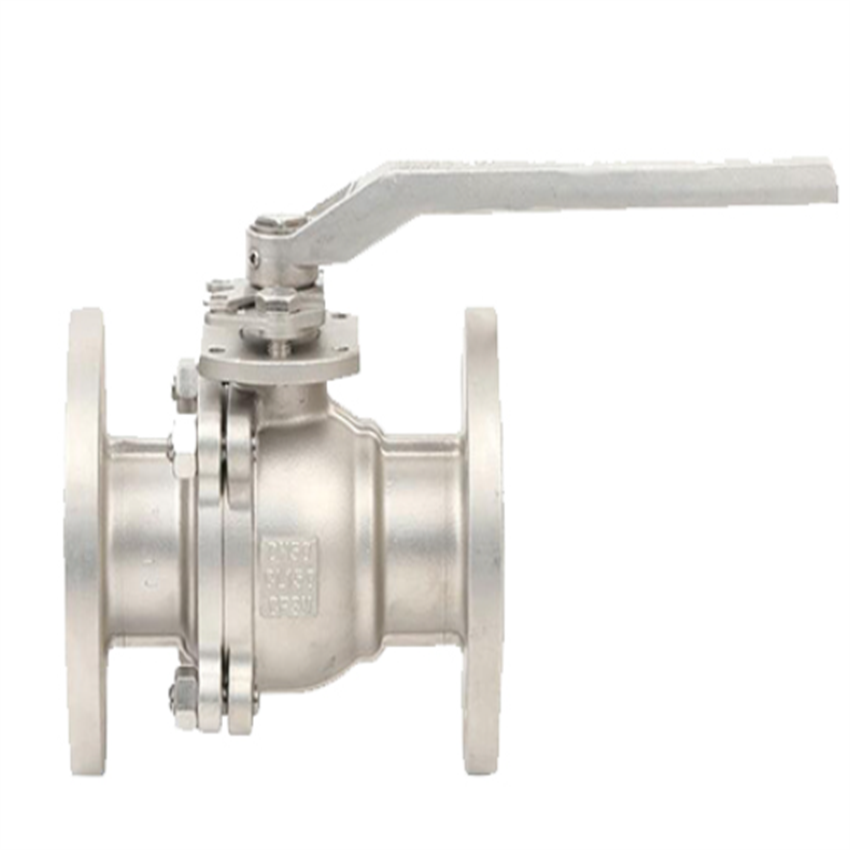

Floating ball valve
  • Floating ball valve

Floating ball valve

Floating ball valve


  • Size: NPS1/4″-8″
  • Rating: Class150-600 LB
  • Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
  • End: SW, BW, RF, RTJ, NPT, BSP, Speial
  • Operation: Operation: Manual, Gear, Pneumatic, Electric
  • Design & Manufacture Standard: API6D, ASME16.34, BS5351
  • Face to Face: ASME B16.10, API6D
  • End Connection: ASME B16.5, ASME B16.25
  • Test Standard: API6D, API598

Product Description

  • Full port or reduced port
  • Fire safe certified
  • Blowout-proof stem
  • Anti-static
  • Low emission control
  • Optional locking device
  • ISO 5211 top flange

MATERIAL SPECIFICATION


PART

CARBON STEEL

MARTENSITIC SS

AUSTENITIC SS

DUPLEX SS
 SUPERDUPLEX SS

NICKEL ALLOY

BODY&BONNET

A105
 A350 LF2
 A350 LF3

A182 F6a
 AISI 410

AISI 316
 AISI 304
 AISI 321
 A182 F44

A182 F51
 A182 F53
 A182 F55

MONEL 400
 INCONEL 625

BALL&SEAT

A105+ENP75μm
 A350 LF2+ENP75μm
 A350 LF3+ENP75μm

A182 F6a
 AISI 410

AISI 316
 AISI 304
 AISI 321
 A182 F44

A182 F51
 A182 F53
 A182 F55

MONEL 400
 MONEL K500
 INCONEL 625

SEAT INSERT

SOFT SEATED: PTFE,RPTFE,NYLON,DEVLON,PEEK,KEL-F,VESPEL

METAL SEATED: Tungsten carbon coated, Chromium carbide coated.

STEM

AISI 4140+ENP75μm

–

AISI 316
 AISI 304
 AISI 321
 A182 F44

A182 F51
 A182 F53
 A182 F55

MONEL K500
 INCONEL 718

BOLTING

A193 B7/A194 2H
 A193 B7M/A194 2HM
 A320 L7/A194 Gr.4
 A320 L7M/A194 Gr.7M

–

A193 B8/A194 Gr.8
 A193 B8M/A194 Gr.8M

A182 F51
 A182 F53
 A182 F55

　-

SEALS

O-ring(std temp)

Lip seals(low temp)

Graphite or spiral wound(high temp)
