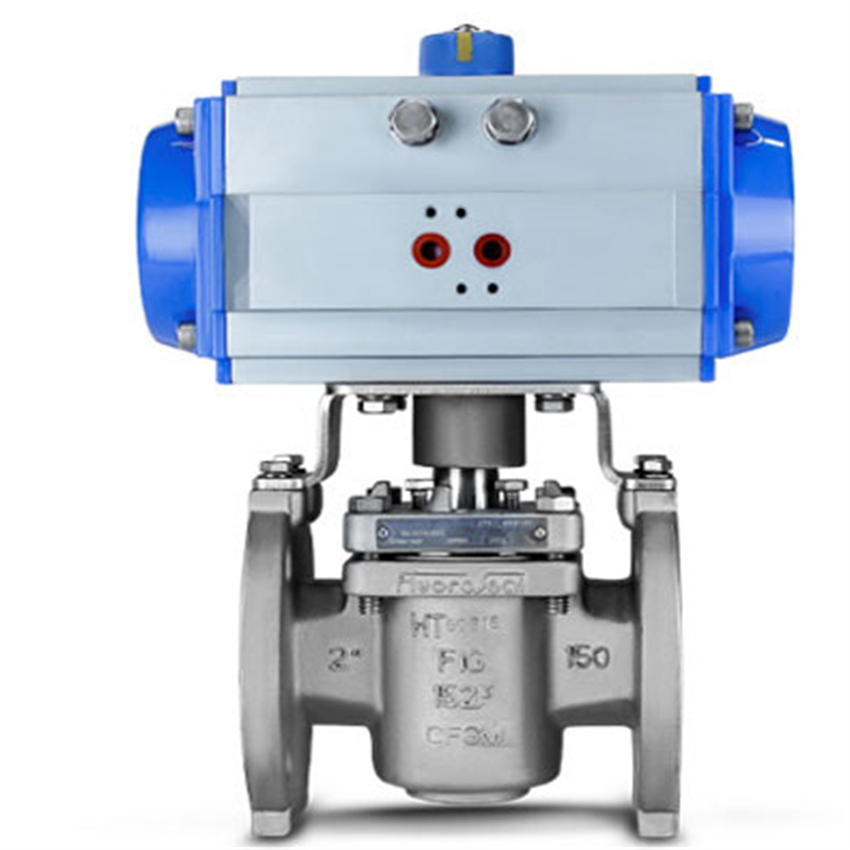

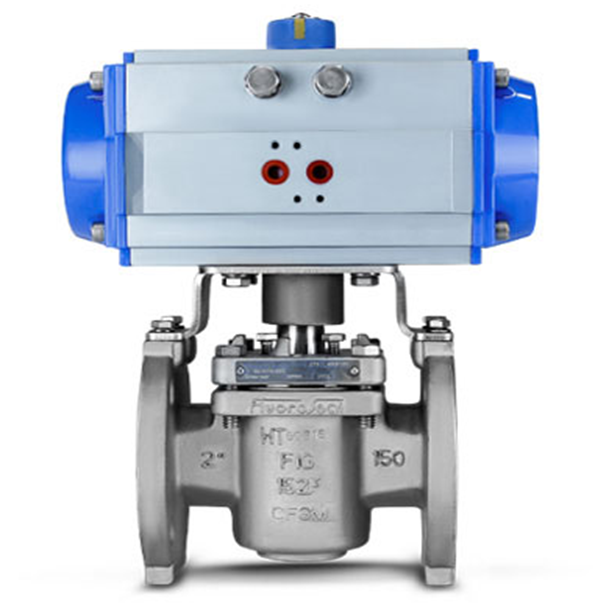

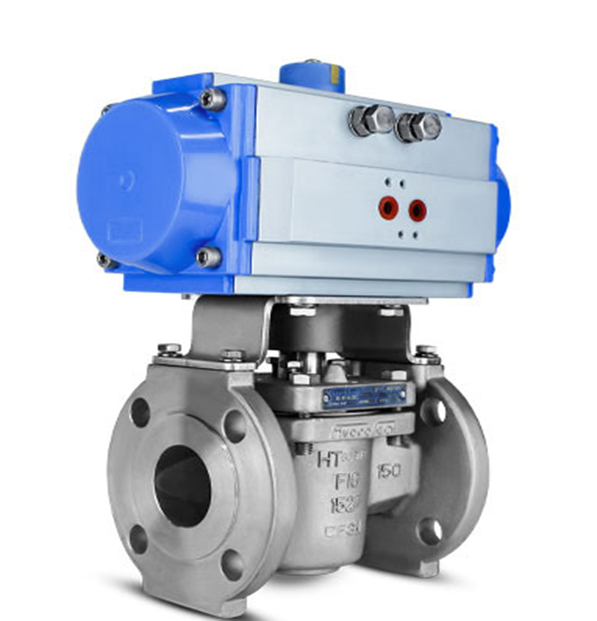

Sleeved Plug Valve

SLEEVED PLUG VALVES

•        Robust, bi-directional, fully adjustable in-line & external sealing

•        Low emission stem seal

•        Cavity free

•        Maintenance free

•        Non-lubricated

•        Firesafe per API 607 – Optional

•        Quarter turn operation

CLASS AND SIZE RANGES

Available Sizes

•        ½” – 24” / DN 15 – DN 600 Flanged & Butt Weld

•        ½” – 2-1/2” / DN 15 – DN 65 Threaded & Socket Weld

Pressure Classes

•        ASME Class 150/300/600 – Fully Rated

•        DIN PN 16 – PN40 – Fully Rated

MATERIALS

Body & Plug

Carbon Steel, Stainless Steels, Duplex Stainless Steels, Monel, Inconel, Hastelloys, Titanium, Zirconium, etc.

Sleeve

PTFE, RPTFE, PFA, GF2P, UHMWPE, HiTemp

DESIGN AND TESTING STANDARDS

API 598

Valve Inspection and Testing

PED

Design and fabrication of pressure equipment

API 599

Metal Plug Valves-Flanged, Threaded and Welding Ends

ISO 10423

Valves design

ANSI B16.10, ANSI B16.5, DIN EN 1092-1, DIN EN 558-1

Face-to-Face and End-to-End Dimensions of Valves

ANSI B16.34, ANSI B16.25

Valves, Flanged and Butt Weld End

ASME B16.42

Ductile Iron Pipe Flanges and Flanged Fittings

API 607

Specification for Fire Test for Valves

ISO 15848-1 CO3, TA-LUFT

Fugitive Emissions Testing

MSS SP-25

Standard Marking System for Valves, Fittings, Flanges, and Unions

MSS SP-55

Quality Standard for Steel Castings for Valves, Flanges, Fittings, and Other Piping Components

MSS SP-61

Pressure Testing of Steel Valves

DIN EN 12266, EPA Method 21

Testing

ASTM / ANSI / EN

Materials
