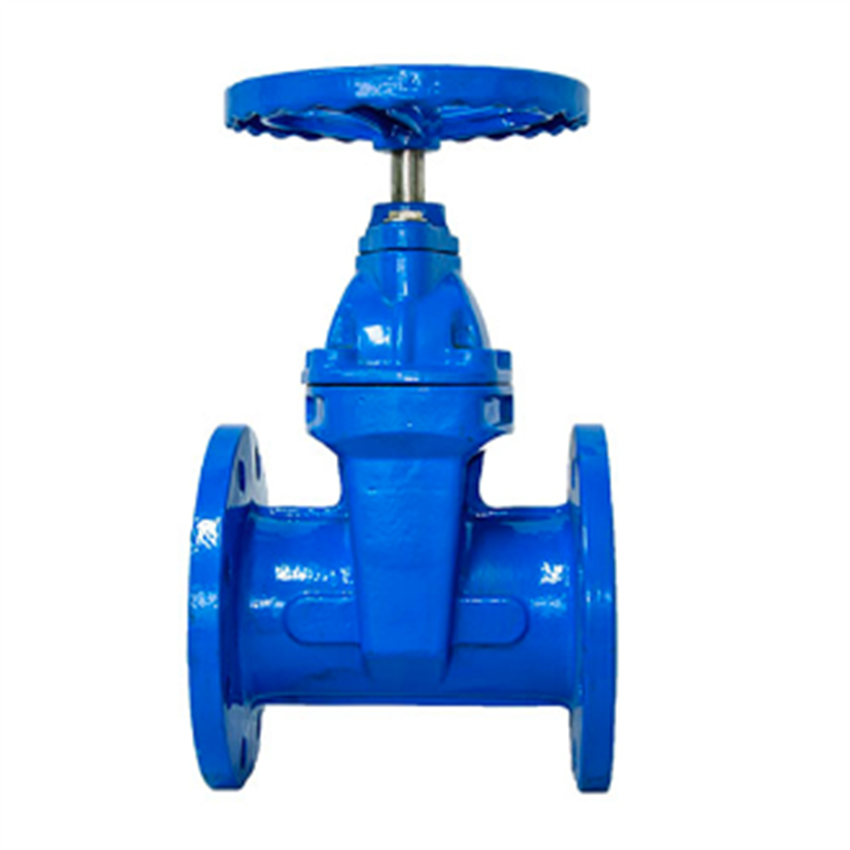

Soft seal gate valve

Features:Size: 1-1/2”~48”
 Pressure Rating: Low Pressure, PN10,PN16,PN25
 Material: Ductile Iron
 Design Standard: BS 5163,EN1171
 Inspection Standard: EN12266
 Application medium: water gas and oil
 Application Temperature: -23 ℃~121℃

What is a soft sealing gate valve?

Soft sealing gate valve is a new type of valve equipment. It is characterized by the use of soft materials such as rubber rings between wedge discs and seats to achieve sealing. Compared with the traditional hard and densely sealing valve, the sealing and performance have obtained a lot promote. The soft sealing gate valve provides a tightening force through high quality spring and pressure plates, so as to achieve a better sealing effect.

It can adapt to different working environments and needs. The soft sealing gate valve has the advantages of sealing reliability, long service life, and energy saving and consumption reduction. It is widely used in the fields of power stations, pharmaceuticals, chemicals, and sewage treatment. Due to the sealing ring of the soft sealing gate valve is made of high elastic materials, it has long service life and it is also helpful to reduce maintenance costs.
